Descrição
Características principais
-
Unidade de accionamento
Sistema Yamaha PW-ST, 70Nm, 25km/h
-
Bateria
InTube 630Wh
-
Garfo
RockShox 35 Silver, Travel: 160mm
-
Tamanhos de rodas mistas
27.5" / 29"
-
Engine
Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h
-
Display
Yamaha, Side Switch, 1.7" LCD, 7 functions
-
Battery
InTube, 630 Wh
-
Frame family
Haibike, AllMtn Yamaha i630, Aluminium
-
Fork
RockShox, 35 Silver, Air, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost
-
Damper
SR Suntour, Edge LO-R8, Air, Trunnion Mount M8x25
-
Crank arm
Haibike Components, The Crank +, Aluminium
-
Brake (front)
Tektro, Orion M745 , 203 mm, 4-piston disc brake
-
Brake (rear)
Tektro, Orion M745 , 180 mm, 4-piston disc brake
-
Tube
Presta valve
-
Rim
Rodi, Tryp 30, with eyelets, hollow rim, Aluminium
-
Clamping ring
Internal hexagon, 34.9 mm
-
Rear derailleur
Shimano, Deore M5100
-
Shift lever
Shimano, Deore M5100, Trigger switch, 11 Speed
-
Bottom bracket
Integrated in the motor
-
Sprocket
Shimano, M5100, 11 - 51 teeth
-
Chain
KMC, X11e
-
Chainring
Steel, 38 teeth
-
Brake lever
Tektro, Orion M745, Aluminium
-
Brake disc (front)
Tektro, TR203
-
Brake disc (rear)
Tektro, TR180
-
Tyre
Continental, Trail King, 60-622, 29" x 2.4"
-
Front wheel hub
Haibike Components, TheHub ++, 6-bolt standard
-
Rear wheel hub
Haibike Components, TheHub ++ Steckachse 12x148, 6-bolt standard
-
Spokes
Sapim, Leader, Black
-
Handlebar
Haibike Components, TheBar +++ Gravity , 780 mm
-
Grips
Haibike, MTB grips
-
Stem
Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 7.0 °
-
Headset
Feimin, A-Head Tapered, Ball bearing
-
Saddle
Selle Royal Vivo 1216HRN
-
Seat post
Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm
-
Pedals
Freeridepedal , Aluminium, with Reflector,
-
Permitted total weight
120.0 kg
-
Tyre (rear)
Continental, Trail King, 65-584, 27.5" x 2.6"
-
Rim (rear)
Rodi, Tryp 35, Aluminium, with eyelets, hollow rim
![](https://beelectric-1e224.kxcdn.com/wp-content/uploads/2022/04/haibike-geometry-bike1.png)

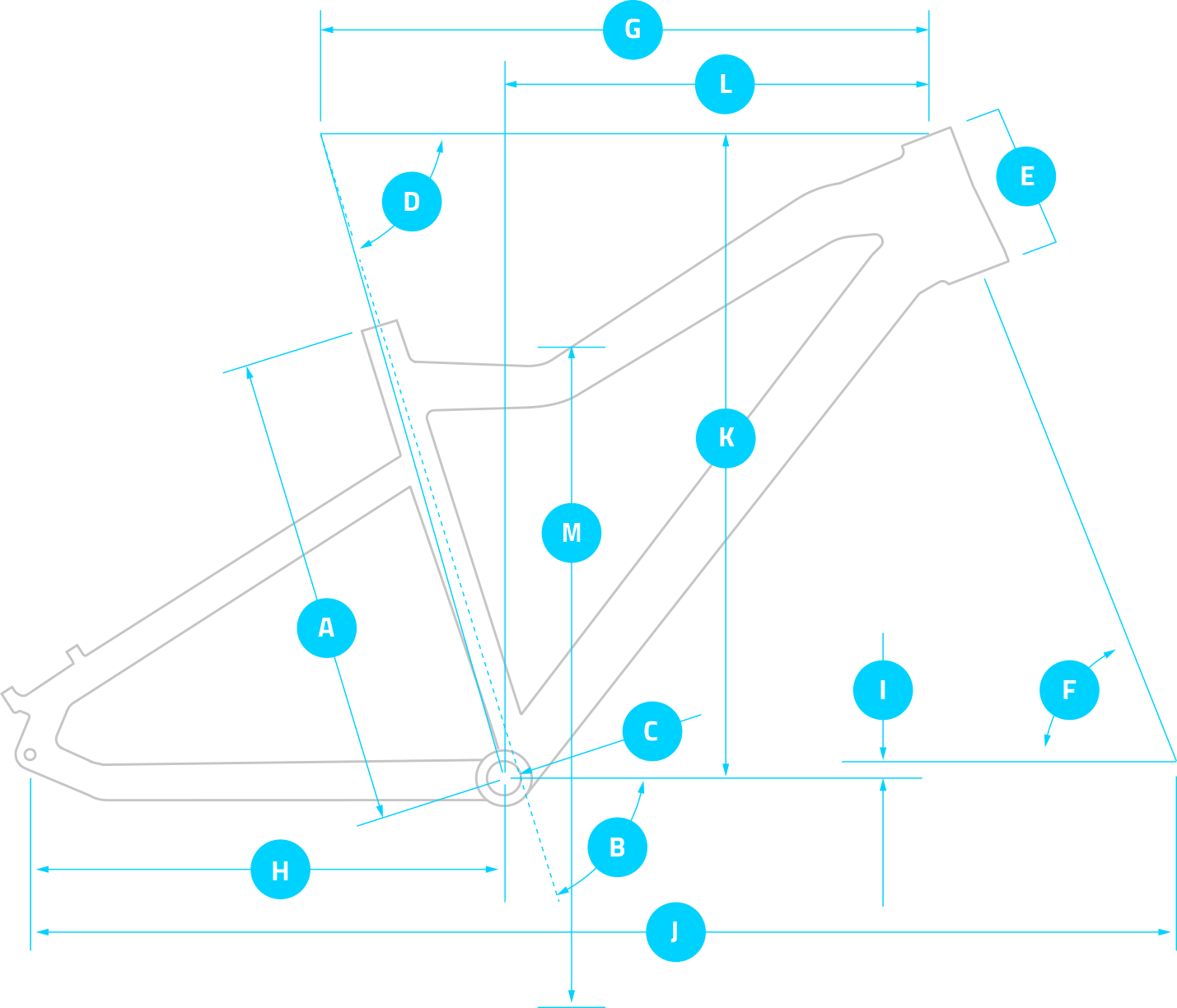

Frame size (i.e. S, M, ...) | S | M | L | XL |
---|---|---|---|---|
A
|
|
|
|
|
B
|
|
|
|
|
D
|
|
|
|
|
E
|
|
|
|
|
F
|
|
|
|
|
G
|
|
|
|
|
H
|
|
|
|
|
I
|
|
|
|
|
J
|
|
|
|
|
K
|
|
|
|
|
L
|
|
|
|
|
