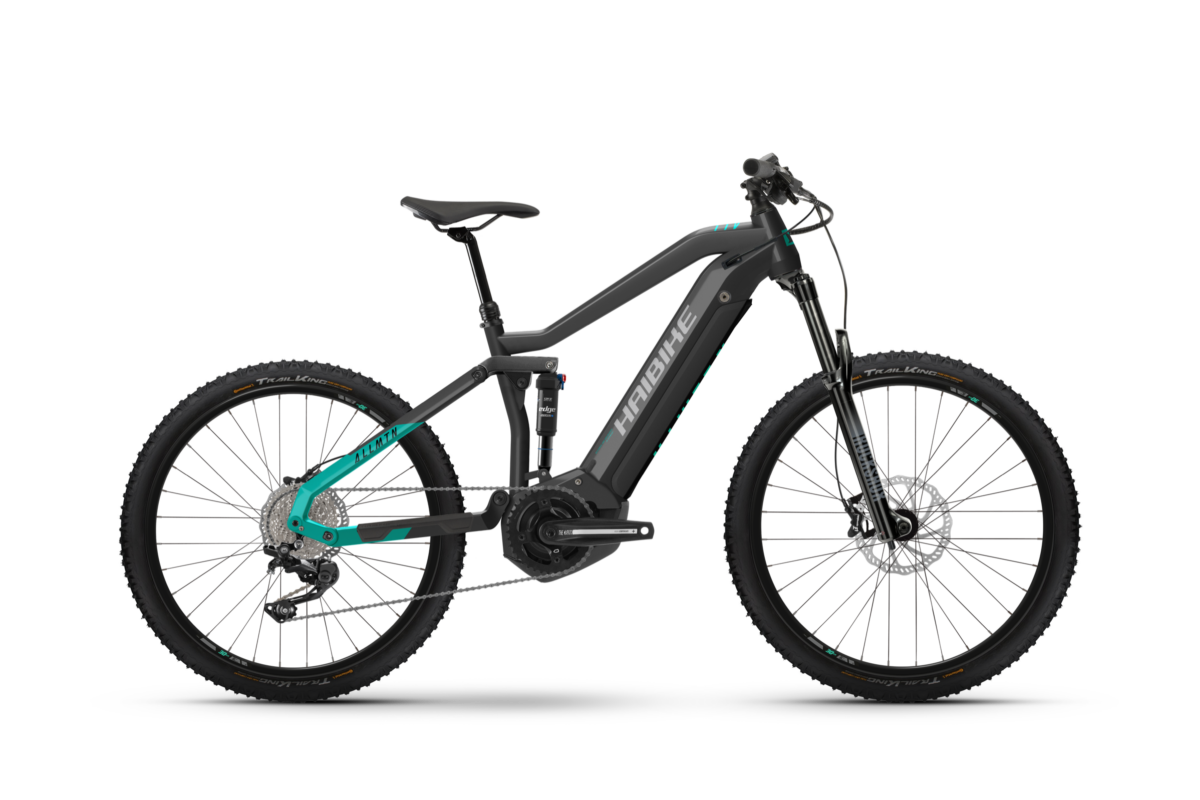

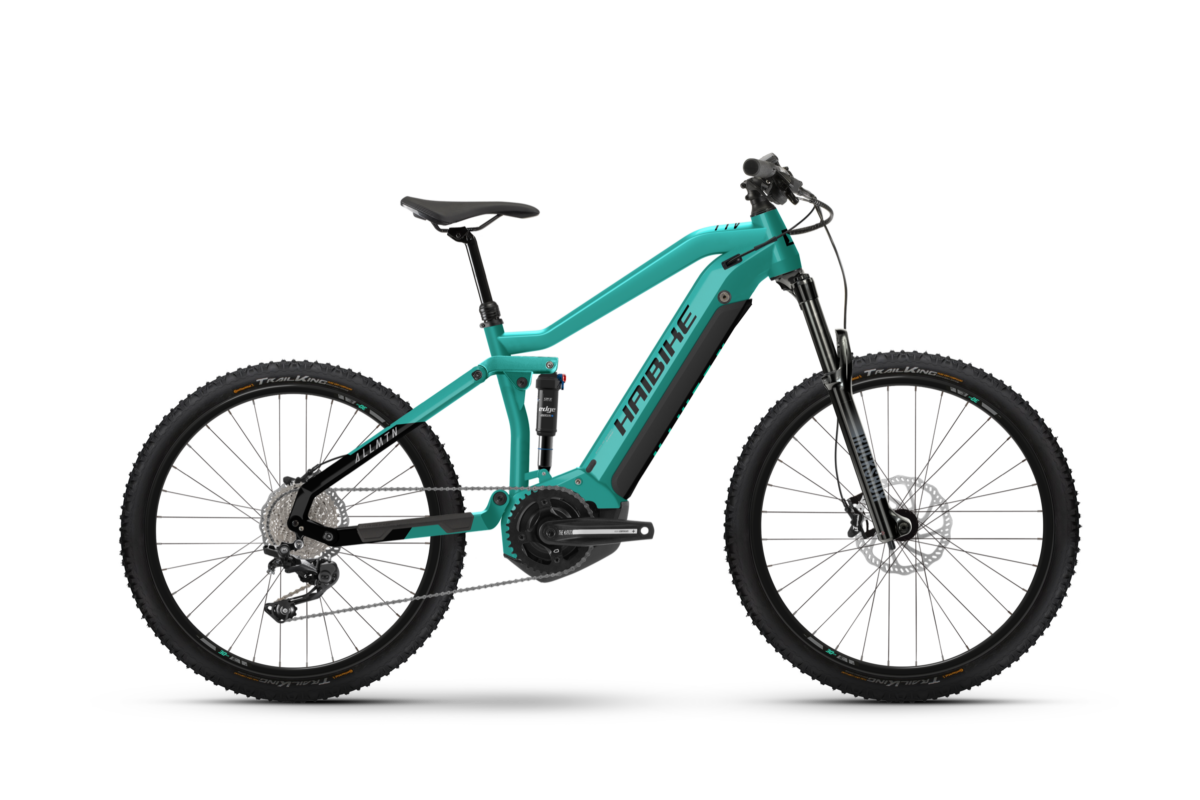

Haibike AllMtn 1

4.109

Our entry-level AllMtn model opens up an enormous range of possibilities: with 160mm travel and a wheelsize mix of 29″ at the front and 27.5″ at the rear, you and the AllMtn 1 will manoeuvre over any terrain with ease and enjoy first-class performance even on challenging descents. The powerful Yamaha PW-ST motor powers you up every hill with a smooth, natural feel to the ride.

AnthraciteAnthraciteBlueBlue
SSMMLLXLXL
Clear
SKU: N/A Categories: , , Tags: ,

Description

Key Features

  • Drive unit

    Drive unit

    Yamaha PW-ST System, 70Nm, 25km/h

  • Battery

    Battery

    InTube 630Wh

  • Fork

    Fork

    RockShox 35 Silver, Travel: 160mm

  • Mixed wheel sizes

    Mixed wheel sizes

    27.5" / 29"

  • Engine

    Yamaha, PW-ST System, 250W, 70 Nm, 25 km/h

  • Display

    Yamaha, Side Switch, 1.7" LCD, 7 functions

  • Battery

    InTube, 630 Wh

  • Frame family

    Haibike, AllMtn Yamaha i630, Aluminium

  • Fork

    RockShox, 35 Silver, Air, Travel= 160 mm, Aluschaft 1 1/8 - 1 1/2" tapered, 15 x 110mm thru-axle Boost

  • Damper

    SR Suntour, Edge LO-R8, Air, Trunnion Mount M8x25

  • Crank arm

    Haibike Components, The Crank +, Aluminium

  • Brake (front)

    Tektro, Orion M745 , 203 mm, 4-piston disc brake

  • Brake (rear)

    Tektro, Orion M745 , 180 mm, 4-piston disc brake

  • Tube

    Presta valve

  • Rim

    Rodi, Tryp 30, with eyelets, hollow rim, Aluminium

  • Clamping ring

    Internal hexagon, 34.9 mm

  • Rear derailleur

    Shimano, Deore M5100

  • Shift lever

    Shimano, Deore M5100, Trigger switch, 11 Speed

  • Bottom bracket

    Integrated in the motor

  • Sprocket

    Shimano, M5100, 11 - 51 teeth

  • Chain

    KMC, X11e

  • Chainring

    Steel, 38 teeth

  • Brake lever

    Tektro, Orion M745, Aluminium

  • Brake disc (front)

    Tektro, TR203

  • Brake disc (rear)

    Tektro, TR180

  • Tyre

    Continental, Trail King, 60-622, 29" x 2.4"

  • Front wheel hub

    Haibike Components, TheHub ++, 6-bolt standard

  • Rear wheel hub

    Haibike Components, TheHub ++ Steckachse 12x148, 6-bolt standard

  • Spokes

    Sapim, Leader, Black

  • Handlebar

    Haibike Components, TheBar +++ Gravity , 780 mm

  • Grips

    Haibike, MTB grips

  • Stem

    Haibike Components, TheStem ++, A-head, Bar bore: 31.8 mm, 7.0 °

  • Headset

    Feimin, A-Head Tapered, Ball bearing

  • Saddle

    Selle Royal Vivo 1216HRN

  • Seat post

    Haibike Components, TheSeatpost ++, Aluminium, 31.6 mm

  • Pedals

    Freeridepedal , Aluminium, with Reflector,

  • Permitted total weight

    120.0 kg

  • Tyre (rear)

    Continental, Trail King, 65-584, 27.5" x 2.6"

  • Rim (rear)

    Rodi, Tryp 35, Aluminium, with eyelets, hollow rim

Frame size (i.e. S, M, ...) S M L XL
A Frame height (cm) 42.0 cm 44.0 cm 47.0 cm 50.0 cm
B Seat tube angle 73.0 degrees 73.0 degrees 73.0 degrees 73.0 degrees
D Seat angle 73.0 degrees 73.0 degrees 73.0 degrees 73.0 degrees
E Head tube length 115.0 mm 120.0 mm 130.0 mm 145.0 mm
F Head tube angle (degrees) 65.0 degrees 65.0 degrees 65.0 degrees 65.0 degrees
G Top tube horizontal 600.0 mm 630.0 mm 660.0 mm 690.0 mm
H Chain stay length 460.0 mm 460.0 mm 460.0 mm 460.0 mm
I Bottom bracket drop -20.0 mm -20.0 mm -20.0 mm -20.0 mm
J Wheelbase 1202.0 mm 1232.0 mm 1264.0 mm 1296.0 mm
K Stack 636.0 mm 641.0 mm 650.0 mm 663.0 mm
L Reach 406.0 mm 434.0 mm 461.0 mm 487.0 mm

Additional information

Brand

Haibike

Frame

Trapez

Color

Anthracite, Blue

Frame Size

S, M, L, XL
