The motor

Powerful, reliable and proven – that’s Bosch motors. When your pedalling power and motor assistance work together, you get exactly the performance you need when out and about.

The driving force of Bosch motors ensures that you reach any destination. Its integration into the bottom bracket ensures a low centre of gravity, directional stability and the direct transfer of force to the rear wheel by a chain or belt. The driving force of the e-bike is controlled by the pedals: the harder you pedal, the more the electric drive assists you – stop pedalling and the motor stops, but you keep on rolling.

The low-maintenance motors with gear detection have an electronic control unit with a 32-bit processor and sensors for power, pedalling rate and speed. The higher the power, the higher the torque and therefore the faster the acceleration. A pushing and starting aid helps your bike up hills at 6 km/h at the touch of a button, even if you are not sitting on the saddle.

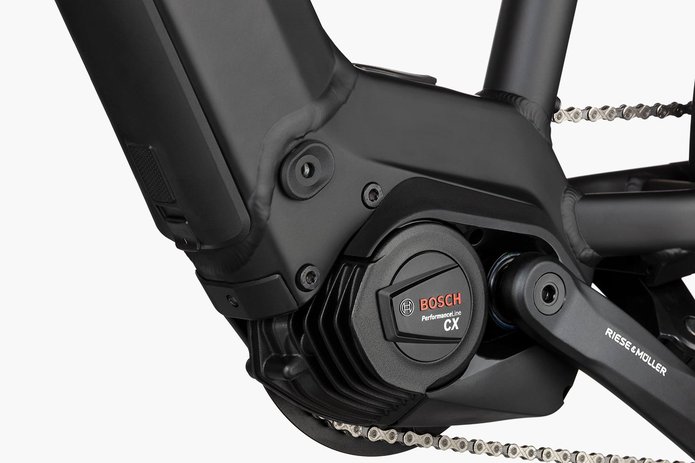

The Bosch Performance Line CX motor

The Performance Line CX motor is a powerful and dynamic drive for intuitive handling and a unique riding experience – for even more riding enjoyment on technically demanding terrain. It stands apart with up to 340% pedal assistance, a maximum torque of 85 Nm, extremely sporty start-up characteristics, and pedalling rate assistance of up to 120 rpm. It stands out on account of its outstanding dynamics, minimal pedalling resistance and low weight of about 2.9 kg. At the same time, it is small and compact, ensuring ultra-aesthetic and unobtrusive integration.

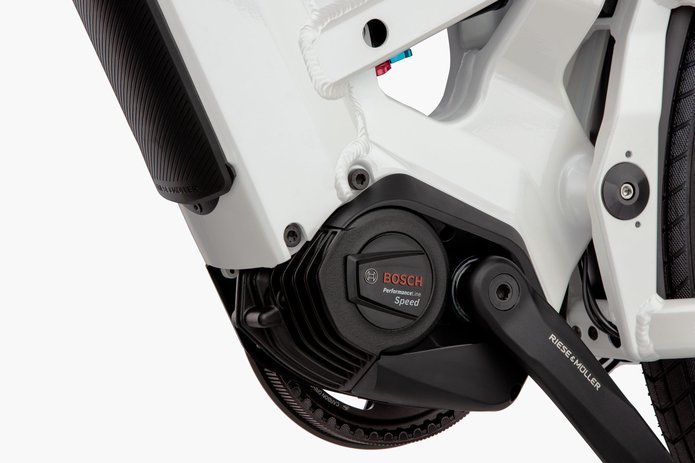

The Bosch Performance Line Speed motor

Assistance up to a speed of 45 km/h makes the Performance Speed drive the fastest Bosch e-bike motor. It impresses with its 250 watts of power, up to 340% pedal assistance, a maximum torque of 85 Nm, extremely sporty start-up characteristics, and pedalling rate assistance of up to 120 rpm.

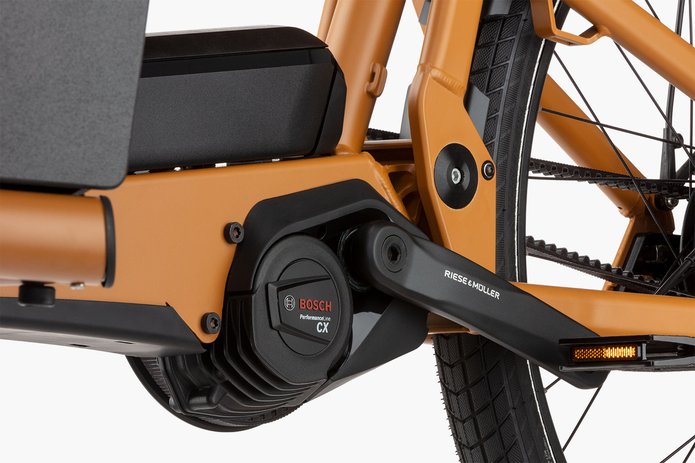

The Bosch Cargo Line motor

The Bosch Cargo Line motor is the most powerful e-bike motor Bosch has yet produced with programming optimised for cargo bikes. It currently represents the benchmark with up to 400% pedal assistance, a maximum torque of 85 Nm, extremely powerful start-up characteristics, and pedalling rate assistance of up to 120 rpm. Its excellent dynamics, very low pedalling resistance, weight of about 3 kg and compact dimensions cannot fail to impress, ensuring that it can be integrated ultra-aesthetically and unobtrusively.

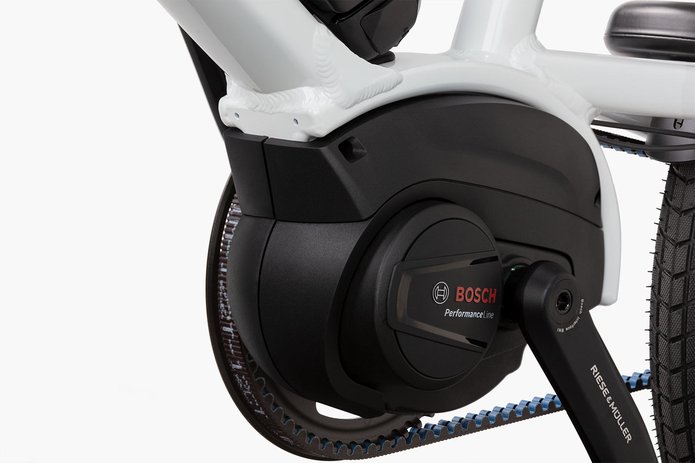

The Bosch Performance Line motor

The Bosch Performance Line motor with up to 340% pedal assistance, a maximum torque of 75 Nm, dynamic start-up characteristics, and pedalling rate assistance of up to 120 rpm offers a natural riding feeling and more security. The Bosch Performance Line motor stands out from the crowd with its extremely quiet running and minimal pedalling resistance – even when switched off. The motor is integrated unobtrusively, thanks to its minimal dimensions and low weight.

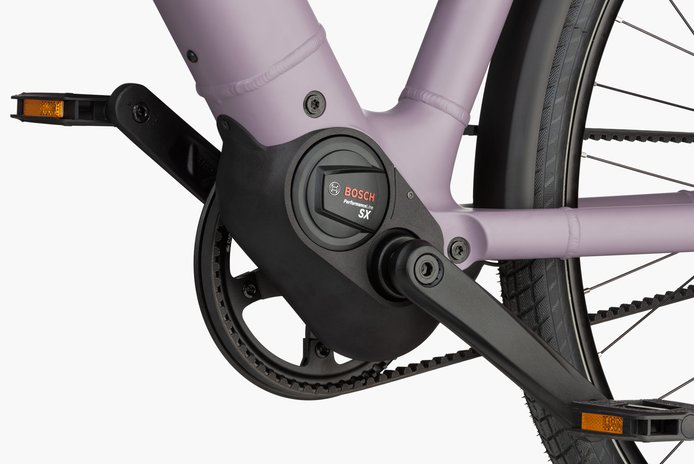

The Bosch Performance Line SX motor

The sporty Performance Line SX is the most lightweight and compact drive unit in the Bosch portfolio. If you have a sporty riding style with a high pedalling rate, it gives you an extra strong boost of assistance – with peaks of up to 600 watts of motor power. With its characteristics, and sensitive and reactive response, it is ideal for anyone looking for a sporty, electrically powered ride. The Performance Line SX motor also impresses wit its significantly reduced pedalling resistance, an almost silent motor, and a weight of only approx. 2 kg. Its direct and sensitive response conveys the natural feel of cycling.

The drive concepts at a glance.

  Performance Line

Performance Line CX

 Performance Line PX Performance Line SX Performance Line Speed Cargo Line
Properties comfortable and reliable, especially suited to relaxed trips powerful and agile, especially suited to more challenging terrain precise and robust, especially suited to long distances and challenging terrain sporty and compact, especially suited to sportier rides very fast and sporty, especially suited to daily commuting very powerful and agile, especially suited to transporting goods
Upgrade available no yes yes yes yes yes
Max. assistance up to (km/h) 25 25 25 25 45 25
Levels of assistance and increase of pedal force* (%)

TURBO: 340

SPORT: 240

AUTO: dynamic

ECO: 60

TURBO: 400

SPORT: 240

AUTO: dynamic

ECO: 60

TURBO: 400

SPORT: 240

AUTO: dynamic

ECO: 60

TURBO: 400

SPORT: 240

AUTO: dynamic

ECO: 60

TURBO: 400

SPORT: 240

AUTO: dynamic

ECO: 60

TURBO: 400

SPORT: 240

AUTO: dynamic

ECO: 60
Max. motor power (W) 600 750 700 600 750 750

Max. torque** (Nm)

 75 100 90 60 100 100
Weight (kg) approx. 2.8 approx. 2.8 approx. 2.9 approx. 2.0 approx. 2.8 approx. 2.8

These are maximum values, deviations are possible depending on the hub gear system. The performance values of this drive unit may be lower upon delivery.
* All available riding modes can be individually combined. The e-biker can activate/deactivate the riding modes via the eBike Flow app or the dealer. A maximum of four riding modes, in addition to OFF mode, can be activated.
** Converted to a gear ratio of 1:1 foot pedal to chainwheel, excluding Shimano Nexus 8-speed hub gear.
