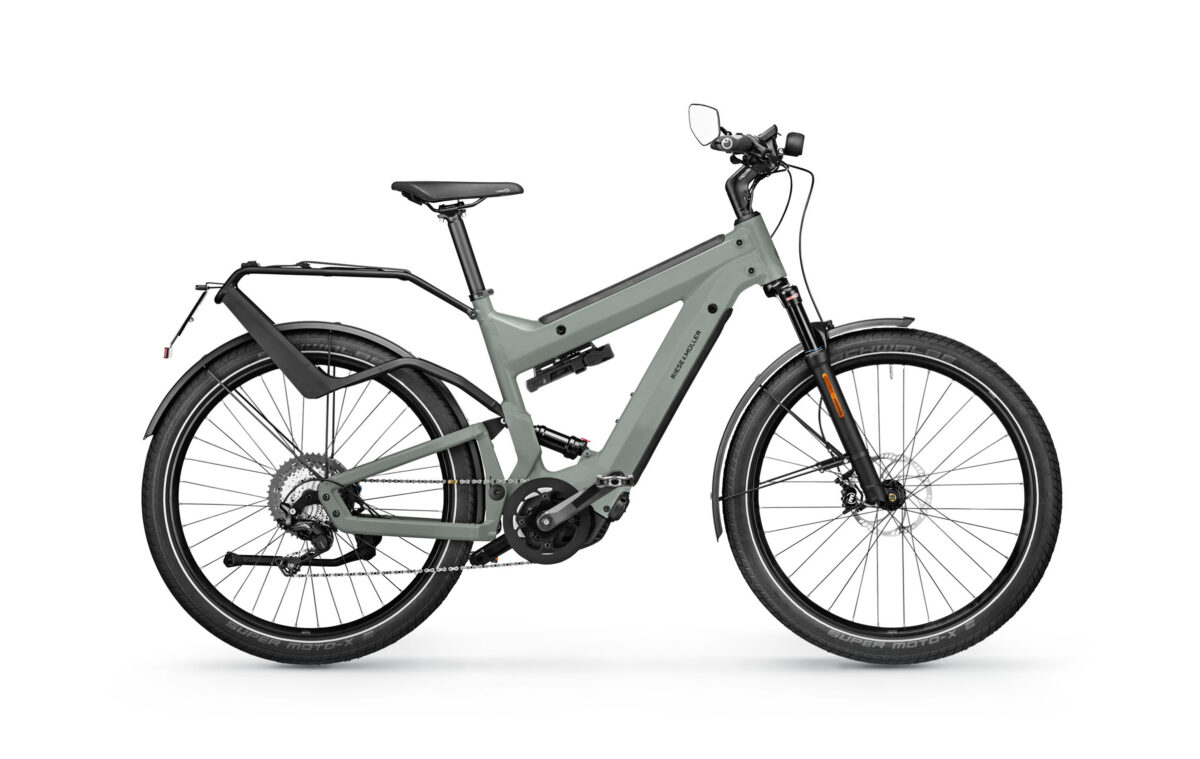

Riese & Müller Superdelite GT touring 45km/h

7.079

Performance Line Speed, PowerTube DualBattery 1125, Intuvia, Deore XT 11-speed, Fat Tire Road

tundra grey matttundra grey mattwarm silver mattwarm silver matt
47 cm47 cm51 cm51 cm56 cm56 cm
Limpar

Descrição

Frame colour tundra grey matt*; warm silver matt*

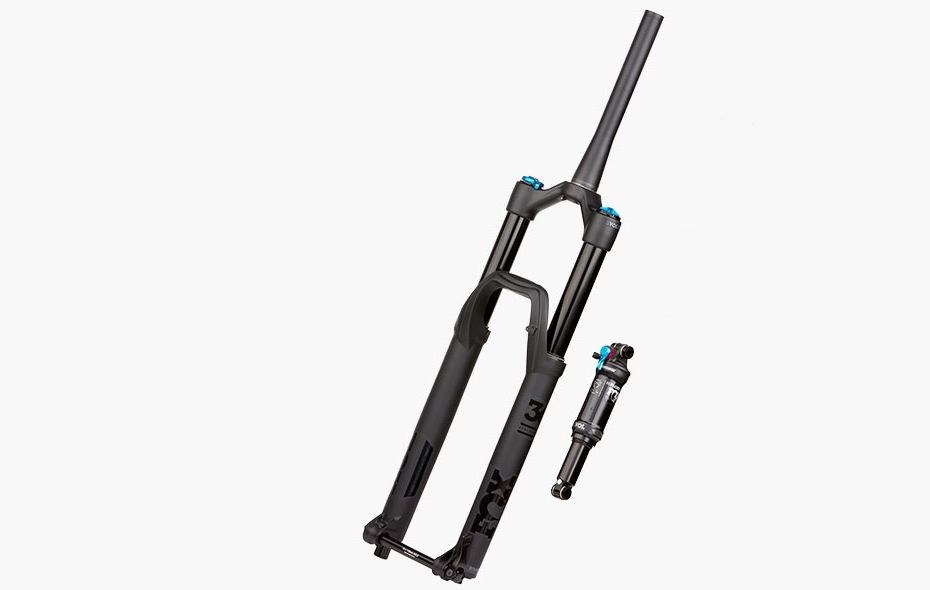

Suspension fork Marzocchi Bomber Z2, Air, tapered, 100mm; Fox Float 34 Performance Boost, Air, 120mm*; Fox Float Rhythm, Air, 140mm, Boost*; SR Suntour Aion 35, Air, tapered, 140mm, Boost*; SR Suntour Mobie 34, Air, tapered, 100mm*
Rear shock Suntour RS-19 190x40; Fox Float DPS Performance 210x50*; Suntour RS-19 210x50*
Headset Acros IntegrationX, block lock
Seatpost Satori Trident; Dropper Post X-Fusion Manic 100*
Tires Schwalbe Super Moto-X 62-584 Reflex; Schwalbe Johnny Watts 60-584*
Tubes Schwalbe AV21
Rims Rodi Tryp35 27,5"
Front hub Novatec Boost, QR, 32H; Novatec Disc 32H*
Rear hub Novatec Boost, QR, 36H
Battery Bosch PowerTube 500 Vertical, 36 V, 13,4 Ah/500Wh; Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh
Motor Performance Line Speed (Gen4)
Display Bosch Intuvia; Bosch Kiox*; Bosch Nyon*; Bosch SmartphoneHub*
Crankset FSA/Riese & Müller, 170 mm
Chain ring 48T
Chain guard Chain guard
Chain KMC X11 ( 131x )
Cassette Shimano CUES CS-LG700-11,11-50
Saddle Selle Royal New Lookin Evo R&M; FIZIK Monte MG*; Selle Royal New Lookin Female Evo R&M*
Pedals VP R&M Custom
Shifting system Shimano XT 11-S Linkglide
Shifter Shimano XT 11-S Linkglide
Handlebar Humpert ergotec Ergo XXL, 31,8 mm*; Humpert ergotec Trekking, 31,8 mm, Alu*; Satori R&M Custom Komfort, 25,4 mm, Alu*; Satori R&M Custom, 25,4mm, Alu*
Stem Humpert ergotec Barracuda Evo, 90 mm, 20°; Satori R&M Custom, cable integration, adjustable angle, Alu*
Grips Ergon ergonomic
Brakes Magura MT4, disc brake; Magura MT5, disc brake; Magura CMe ABS, disc brake*
Front light Supernova M99 Mini Pro-45
Tail light Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
Mudguards SKS A69R; SKS A65R*
Luggage rack Riese & Müller; pannier holder Riese & Müller*
Rubber Bibia
Horn Supernova horn
Kickstand Pletscher Comp 40 Flex
Lock Abus Bordo X+ 6000/90cm black
Pump Beto air suspension fork pump
Mirror Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*
RX Hardware RX Chip (für RX Services)*
Frame size [cm] 47 cm*; 51 cm*; 56 cm*
Top tube length [cm] 59
Reach [cm] 40
Stack [cm] 64,5
Head tube angle [°] 67
Seat tube angle [°] 73,5
Trail [mm] 102 / GX: 95
Wheelbase [cm] 120 / GX: 121,5
Bottom bracket height [cm] 30 / GX: 32
Stand-over height [cm] 82 / GX: 84
Chainstay length [cm] 50,5
Overall length [cm] 192 / GX: 193
Wheel size ["] 27,5
Head tube length [mm] 150
Headset size ["] 1 1/2
Front suspension travel [mm] 100 / GX: 140
Effective rear suspension travel [mm] 100 / GX: 140
Rear shock length [mm] 190 / GX: 210
Front shock mounting width [mm] 30
Rear shock mounting width [mm] 22
Front shock locking screw M8
Rear shock locking screw M8
Rear suspension ratio 2,5 / GX: 2,8
Rear dropout width [mm] 148
Gear ratios [m] 2,29-9,56
Weight [kg] 31,6
Weight [lbs] 69,6
Gross vehicle weight rating [kg] 140
Weight rating: Luggage rack [kg] 20
Childseat compatibility yes
Trailer compatibility: Single wheel/single attachment point no
Trailer compatibility: Two wheel/single attachment point yes
Compatibility: Tagalong trailer bike yes
Top tube length [cm] 62
Reach [cm] 43
Stack [cm] 63,5
Head tube angle [°] 67
Seat tube angle [°] 73,5
Trail [mm] 102 / GX: 95
Wheelbase [cm] 123 / GX: 124,5
Bottom bracket height [cm] 30 / GX: 32
Stand-over height [cm] 81,5 / GX: 83,5
Chainstay length [cm] 50,5
Overall length [cm] 195 / GX: 196
Wheel size ["] 27,5
Head tube length [mm] 140
Headset size ["] 1 1/2
Front suspension travel [mm] 100 / GX: 140
Effective rear suspension travel [mm] 100 / GX: 140
Rear shock length [mm] 190 / GX: 210
Front shock mounting width [mm] 30
Rear shock mounting width [mm] 22
Front shock locking screw M8
Rear shock locking screw M8
Rear suspension ratio 2,5 / GX: 2,8
Rear dropout width [mm] 148
Gear ratios [m] 2,29-9,56
Weight [kg] 31,8
Weight [lbs] 70,1
Gross vehicle weight rating [kg] 140
Weight rating: Luggage rack [kg] 20
Childseat compatibility yes
Trailer compatibility: Single wheel/single attachment point no
Trailer compatibility: Two wheel/single attachment point yes
Compatibility: Tagalong trailer bike yes
Top tube length [cm] 65
Reach [cm] 46
Stack [cm] 64,5
Head tube angle [°] 67
Seat tube angle [°] 73,5
Trail [mm] 102 / GX: 95
Wheelbase [cm] 126 / GX: 127,5
Bottom bracket height [cm] 30 / GX: 32
Stand-over height [cm] 82,5 / GX: 84,5
Chainstay length [cm] 50,5
Overall length [cm] 198 / GX: 199
Wheel size ["] 27,5
Head tube length [mm] 150
Headset size ["] 1 1/2
Front suspension travel [mm] 100 / GX: 140
Effective rear suspension travel [mm] 100 / GX: 140
Rear shock length [mm] 190 / GX: 210
Front shock mounting width [mm] 30
Rear shock mounting width [mm] 22
Front shock locking screw M8
Rear shock locking screw M8
Rear suspension ratio 2,5 / GX: 2,8
Rear dropout width [mm] 148
Gear ratios [m] 2,29-9,56
Weight [kg] 32
Weight [lbs] 70,5
Gross vehicle weight rating [kg] 140
Weight rating: Luggage rack [kg] 20
Childseat compatibility yes
Trailer compatibility: Single wheel/single attachment point no
Trailer compatibility: Two wheel/single attachment point yes
Compatibility: Tagalong trailer bike yes

Informação adicional

Marca

Riese & Müller

Cor do Quadro

tundra cinza mate, prata mate quente

Tamanho do Quadro

47 cm, 51 cm, 56 cm
