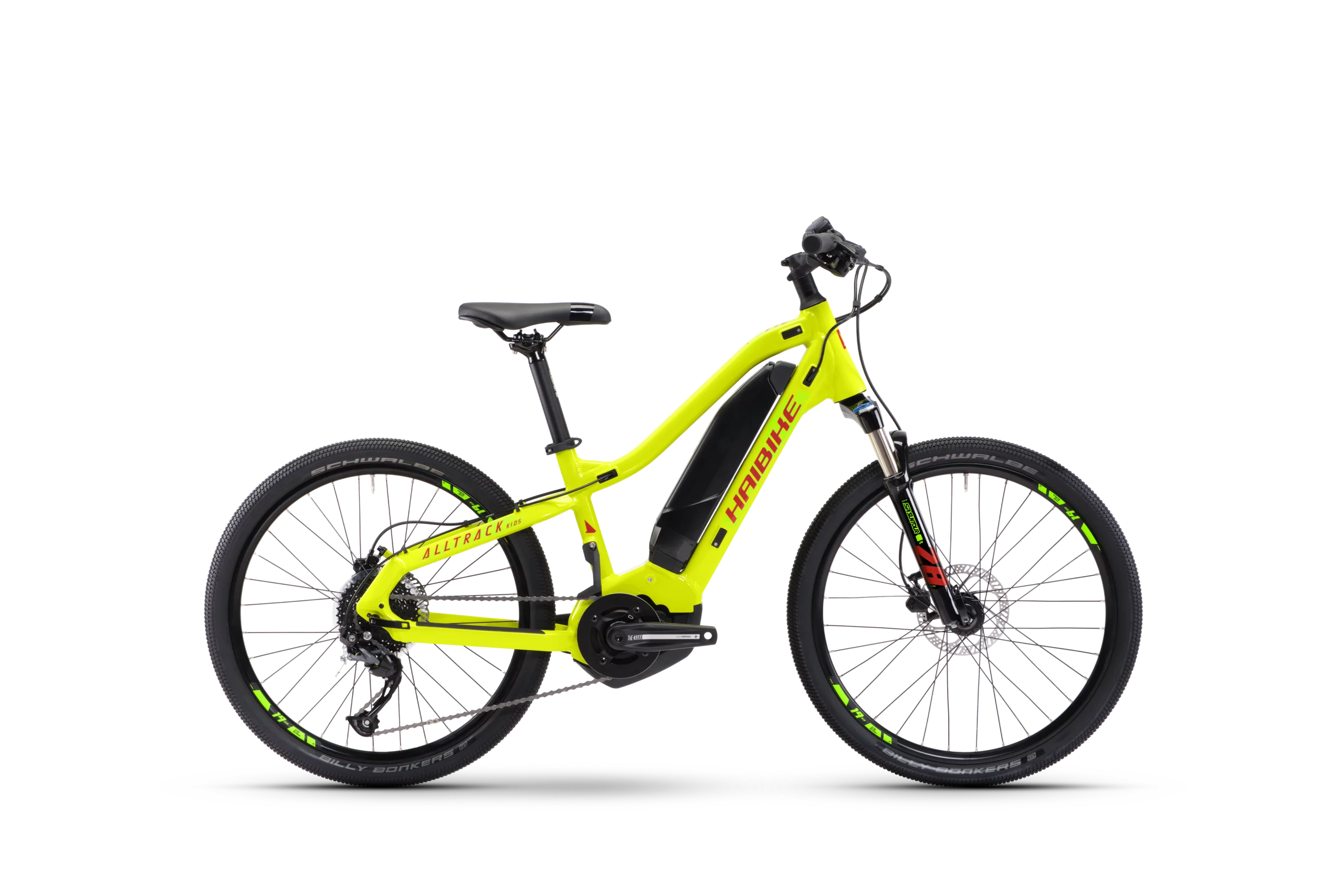

Haibike AllTrack Kids


Cruising over the trails like the big kids: Our ALLTRACK KIDS ensures lots of fun for the younger riders, who can finally keep up with mom and dad thanks to the Yamaha PW-TE drive. Whether it’s a big family outing or the daily ride to school: With this well-equipped 24″ eMTB, no hill is too steep and no ride is too long for the youngsters!


Key Features

  • Suitable body height

    Suitable body height

    From 140cm

  • Drive unit

    Drive unit

    Yamaha PW-TE System, 60 Nm, 20 km/h

  • Battery


    Yamaha Lithium Ion 400Wh

  • Brakes


    Tektro M282

  • Engine

    Yamaha, PW-TE System, 250 W, 60 Nm

  • Display

    Yamaha, Side Switch, 1.7" LCD, 7 functions

  • Battery

    Yamaha, Lithium Ion, 400 Wh

  • Frame family

    Haibike, SDURO HardFour, Aluminium 6061

  • Fork

    SR Suntour, XCR LO, Lockout, Steel spring, 63 mm travel, Steel steerer tube 1 1/8", Quick release 100mm

  • Crank arm

    Haibike Components, The Crank +, Aluminium

  • Brake (front)

    Tektro, M282, 2-piston disc brake

  • Brake (rear)

    Tektro, M282, 2-piston disc brake

  • Tube

    Presta valve

  • Rim

    Rodi, FW Disc, With Eyelets, Double Wall, Aluminium

  • Clamping ring

    quick release, Quick release, 34.9 mm

  • Rear derailleur

    Shimano, Altus M2000

  • Shift lever

    Shimano, Altus M2010, Rapidfire

  • Bottom bracket

    integrated in the motor

  • Sprocket

    SunRace, CSM90, 11 - 36 teeth

  • Chain

    KMC, X9

  • Chainring

    Steel, 32 teeth

  • Chain guide

    Nylon directmount

  • Brake lever

    Tektro, M282, Aluminium

  • Brake disc (front)

    Tektro, TR160, 160 mm

  • Brake disc (rear)

    Tektro, TR160, 160 mm

  • Tyre

    Schwalbe, Billy Bonkers, 50-507, 24 x 2 inch

  • Front wheel hub

    Haibike Components, TheHub +, 6-bolt standard

  • Rear wheel hub

    Haibike Components, TheHub +, 6-bolt standard

  • Spokes

    Sapim, Leader

  • Handlebar

    Haibike Components, TheBar + Topflat, 640 mm

  • Grips

    Haibike, MTB grips

  • Stem

    Haibike Components, TheStem ++, A-head, 31.8 mm, 12.0 degrees

  • Headset

    Feimin, A-Head Tapered, Ball bearing

  • Saddle

    Haibike Components, TheSaddle Kids

  • Seat post

    Haibike Components, The Seatpost +, Aluminium, Patent, 31.6 mm

  • Pedals

    Wellgo, LU984DU

  • Permitted total weight

    80.0 kg

Frame size (i.e. S, M, ...) Uni
A Frame height (cm) 34.0 cm
B Seat tube angle 73.0 degrees
D Seat angle 73.0 degrees
E Head tube length 165.0 mm
F Head tube angle (degrees) 68.0 degrees
G Top tube horizontal 500.0 mm
H Chain stay length 415.0 mm
I Bottom bracket drop -30.0 mm
J Wheelbase 1000.0 mm
K Stack 556.0 mm
L Reach 330.0 mm
M Stand-over height 64.0 cm
